Balanced t(11;22) carrier

46,XX,t(11;22)(q23;q11.2)

Also known as: t(11;22), constitutional t(11;22), Emanuel syndrome carrier

46,XX,t(11;22)(q23;q11.2) is the most common recurrent constitutional reciprocal translocation in humans. The carrier is balanced and healthy; the reproductive risk is a 3:1 segregation that passes the small der(22) on as an extra chromosome, producing Emanuel syndrome.

Open in the interactive visualizer →

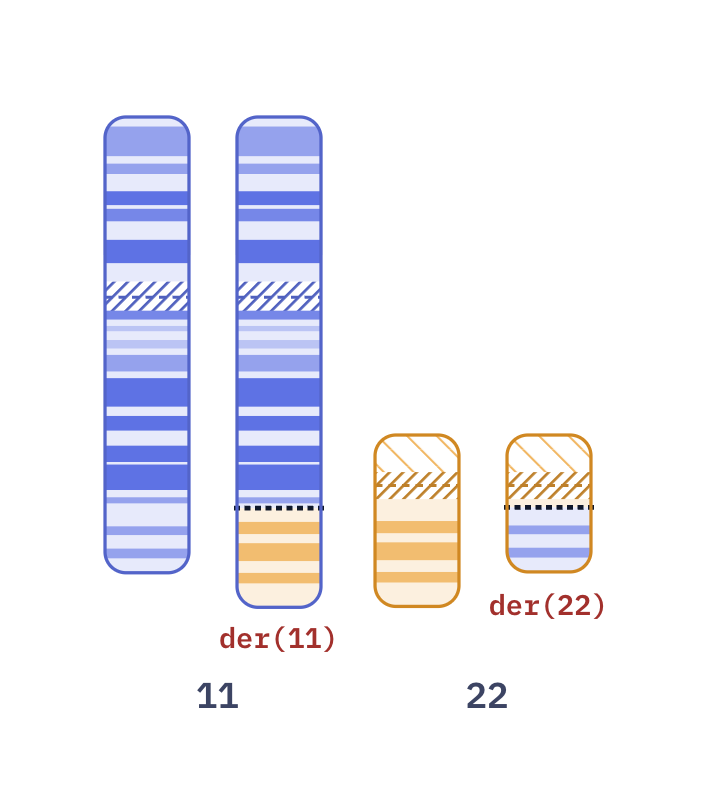

Karyotype of Balanced t(11;22) carrier (46,XX,t(11;22)(q23;q11.2))
Balanced t(11;22) carrier (46,XX,t(11;22)(q23;q11.2)) drawn by KaryoDraw, showing the involved chromosomes with their normal homolog.

What the notation means

summaryA normal count of 46 chromosomes and the usual female sex chromosomes. One abnormality: a reciprocal TRANSLOCATION: chromosomes 11 and 22 break (at 11q23 and 22q11.2) and swap the pieces beyond those breaks, giving two derivative chromosomes der(11) and der(22). The pieces that move are the tips, which carry no centromere; each derivative keeps the centromere it started with, and that is the chromosome it is named for.
46XX

46 is the number of chromosomes counted in the cell. That is the normal number: 22 pairs of autosomes, the chromosomes other than X and Y, plus one pair of sex chromosomes. XX lists the sex chromosomes, here two X chromosomes, the usual female set. These two fields open every karyotype because they describe the whole cell. Any abnormality is written after them.

t(11;22)(q23;q11.2)

A TRANSLOCATION (t): two chromosomes exchange segments. (11;22) lists the two chromosomes that exchanged segments, 11 and 22. The lower number is written first, or the sex chromosome if one is involved, so that the same translocation is always written the same way. (q23;q11.2) gives one breakpoint on each chromosome, in the same order as the chromosomes, so the breakpoints are 11q23 on 11 and 22q11.2 on 22. Each chromosome keeps its own centromere and takes the segment beyond the other's break.
